AL2020 FLEXIBLE WALL WASHER IP67 IP68

$0.00

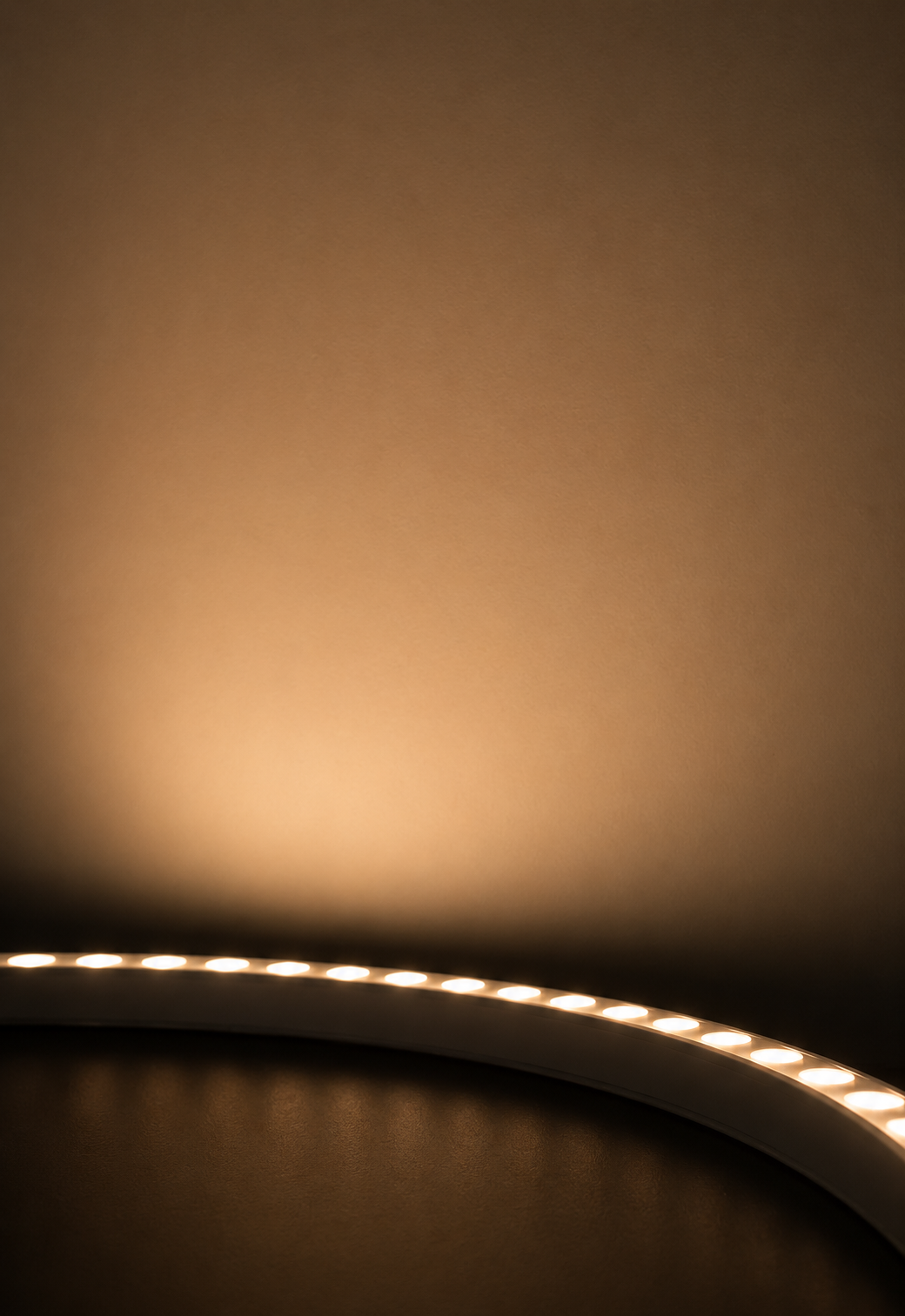

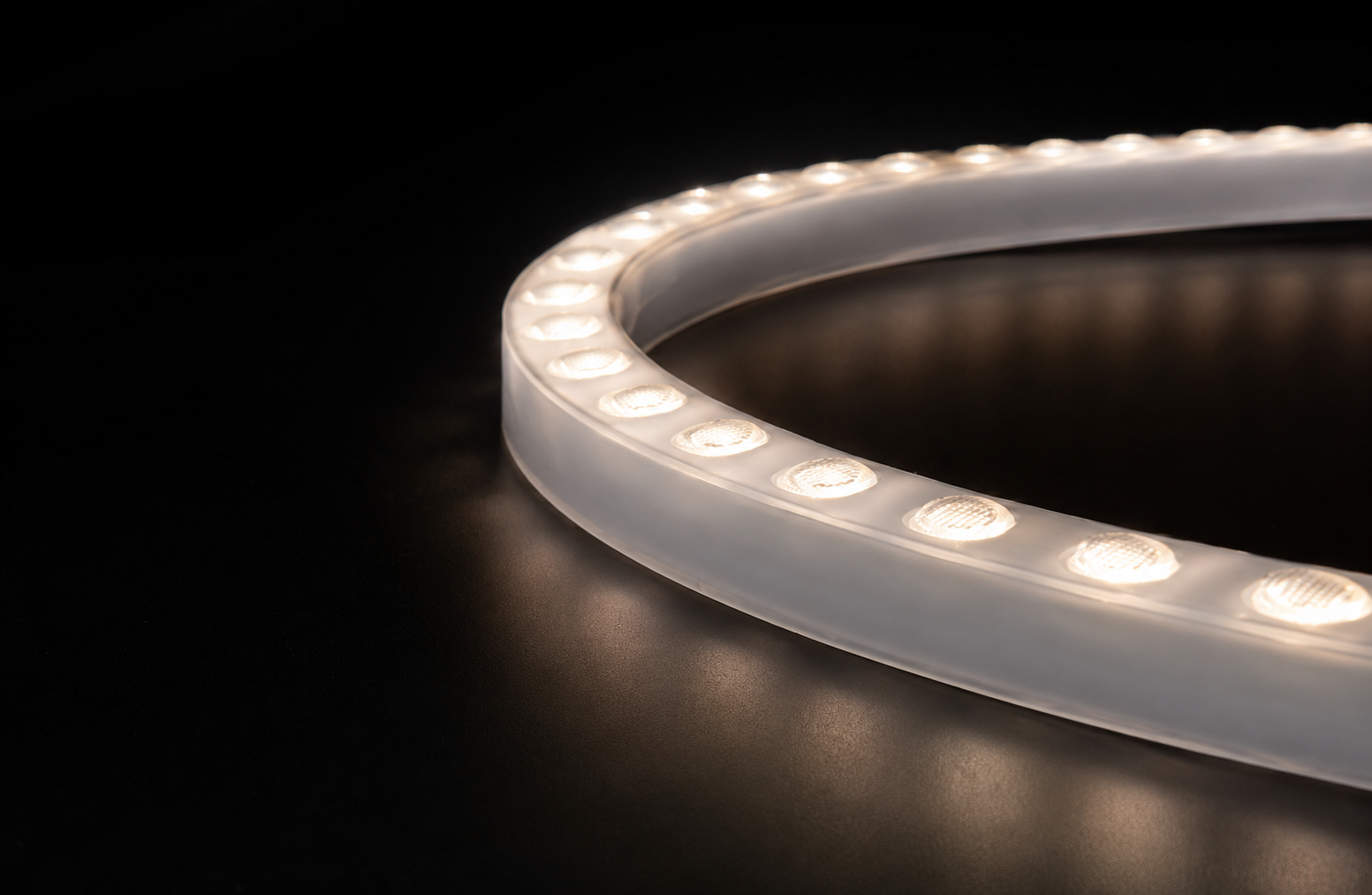

36W high luminance lighting solution, featuring a unique 3D bending capability (Horizontal and Vertical Bend). Constructed with solid Thermoplastic polyurethane IP68 housing, fully submersible in water up to a depth of one meter. It utilizes LUMILEDS 3030 LEDs for high-quality monochromatic colour. This product serves as an excellent alternative to traditional rigid wall washer lights with aluminium housings or standard LED strips for accent lighting. Additionally, it operates on a DC24V low-voltage input, ensuring a safe and reliable installation.

PRODUCT CODE AL2020-40-24-IP68 | AL2010-24-24-IP67

DIMENSIONS 20mm x 20mm

LED SPACING 25mm

VOLTAGE 24V DC

WATTAGE 36W

IP RATING IP67 IP68

LED CCT 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

BEAM ANGLE
15D, 30D, 40D, 60D
15D x 30D
15D x 60D

BENDING RADIUS Horizontal 200mm Vertical 300mm

DIMMING Triac, DALI, Casambi

MOUNTING Aluminium Clips, Aluminium Profile, Bendable Profile

RUNNING LENGTHS
5 meters | Powered one end
10 meters | Powered both ends

WARRANTY 3 years
